Victorian Tile Restoration Reveals Safety Risks

How to Identify and Address Movement and Loose Grout in Victorian Tile Floors in Stapenhill

If you observe shifting in your Victorian tile floor or notice loose grout joints, this typically indicates deeper, underlying issues rather than mere surface wear. The homeowner of this Stapenhill property became increasingly worried about the noticeable movement across the entrance floor. Sections that were loose, cracking joints, and uneven levels were creating a significant trip hazard. While this floor was part of an original Edwardian entranceway that retained much of its historic charm, years of wear, prior repairs, and continuous movement had made it susceptible to further deterioration.

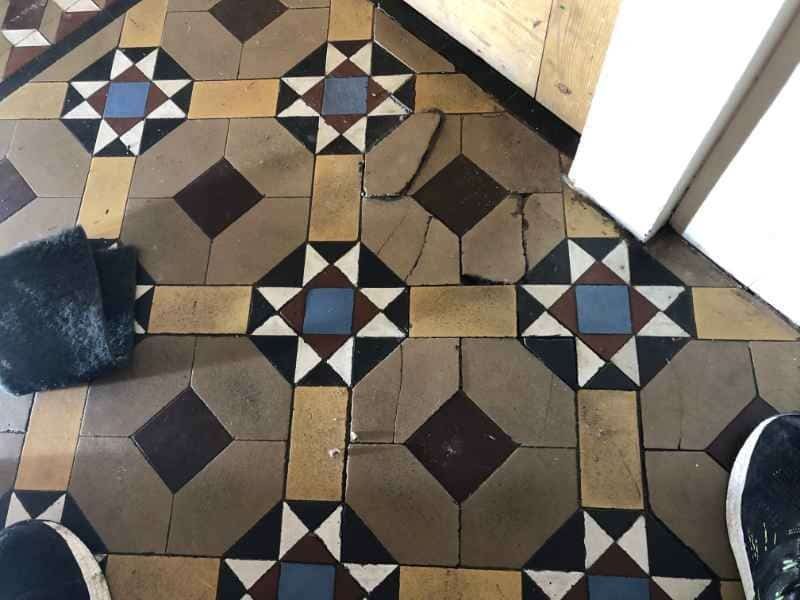

Thoroughly Assessing the Initial Condition of the Floor

The entrance displayed a stunning arrangement of Victorian geometric tiles, reflecting the architectural style prevalent during Burton’s industrial boom. Over the years, heavy foot traffic had led to visible wear in the central walkway, while the edges remained relatively stable. Many tiles shifted underfoot, and gaps appeared between adjoining sections due to previous repair failures. The homeowner’s primary concern was safety, especially in the heavily trafficked entrance area.

Loose grout was widespread throughout various sections of the floor. In some areas, prior repair attempts had involved harder materials that failed to bond effectively with the surrounding tiles. Small fragments had chipped away from the joints, exposing edges to further wear. The uneven surface between neighbouring tiles created an uncomfortable feeling underfoot and gave the floor a neglected appearance, despite regular cleaning efforts.

Throughout the hallway, the condition of the clay surface varied greatly. Certain sections retained their vibrant colour and definition, while others exhibited darker patches where years of grime had settled into the porous tile body. Historic clay floors of this type gradually absorb contaminants over time, which explains why routine washing becomes less effective as the years progress. This led to a floor that appeared worn and inconsistent, even though the original geometric design remained largely intact.

A closer inspection uncovered evidence of multiple previous attempts to fix isolated defects rather than addressing the floor as an integrated system. Different sections had been lifted and replaced at various times, leading to subtle discrepancies in level and alignment. Some joints contained deteriorated material that had become brittle and discoloured, while other repairs looked significantly newer. These inconsistencies disrupted the visual coherence of the original layout.

Despite the entrance floor being usable, the practical implications of the deterioration were becoming increasingly hard to ignore. Tiles shifted slightly under weight, grout continued to loosen, and the uneven surface complicated cleaning efforts. Dirt accumulated in open joints and around unstable areas, creating a cycle where the floor appeared progressively more worn. The homeowner understood that cosmetic cleaning would not resolve these issues, which made it crucial to ascertain the full extent of the underlying problems.

The original pattern of the floor was one of the property’s most attractive features. Decorative borders and contrasting clay colours continued to define the layout, enhancing the entrance’s period character. Despite the movement and visible wear, most of the historic materials remained intact, adding to the frustration of the situation. The floor appeared neglected, yet much of the original fabric was still present and salvageable.

The project commenced with a thorough evaluation of the floor’s visible condition, rather than jumping straight into intervention. Loose sections, open joints, worn traffic routes, and areas of previous repairs were all carefully documented. Identifying the extent of the deterioration provided clarity on the floor’s condition and laid the groundwork for subsequent actions.

What Causes Uneven Victorian Tiles and Failed Repairs in Your Home?

Uneven tiles and open joints often indicate that a previous repair has not succeeded beneath the surface. In this Stapenhill hallway, the movement affected not only individual tiles but also the interconnected areas where the supporting bed had lost stability. As the support weakened, tiles began to shift independently, and surrounding joints gradually opened up.

Loose tiles seldom fail in isolation; the support beneath them has changed.

The visible symptoms clarified why dirt accumulated quickly around the affected areas. Open joints trapped contaminants, while movement allowed debris to infiltrate deeper into the gaps whenever the floor was stepped on. Historic clay tiles are inherently absorbent, meaning that once dirt penetrates weakened joints, it becomes progressively more difficult to remove through standard cleaning methods. Similar issues, along with the appropriate approach to long-term solutions, are discussed in this guide to properly restoring Victorian tiles.

Why Is It Crucial to Stabilise Loose Victorian Tiles Prior to Restoration?

Continuously cleaning a floor with loose tiles often delays addressing the underlying issue and may make ongoing deterioration easier to overlook. Once the extent of the movement was assessed, the planned cleaning was suspended to prioritise stabilising the unstable areas. Attempting restoration before stabilisation would leave the root problem unresolved and potentially exacerbate the situation.

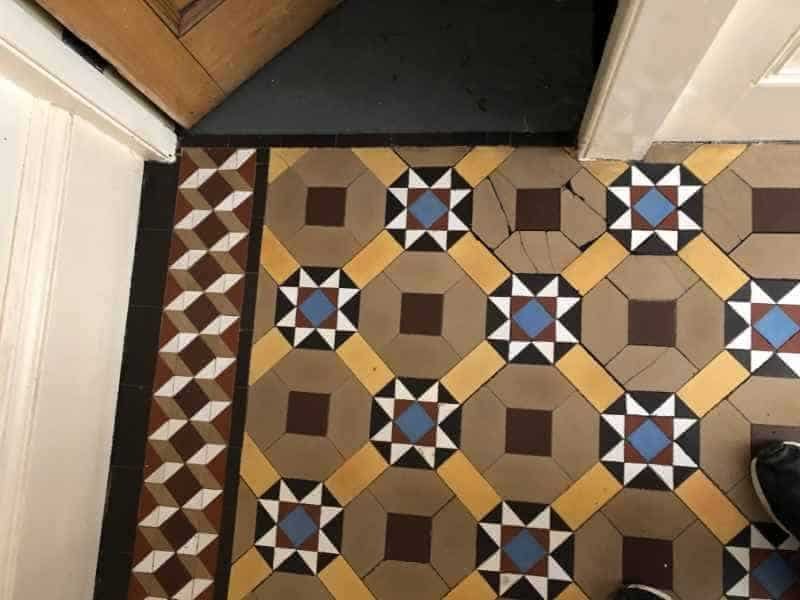

Cleaning alone would have provided a temporary cosmetic enhancement while leaving the movement beneath the floor unchanged. Stabilisation first enabled the careful removal of affected tiles, the elimination of unsuitable materials, and the preparation of the supporting bed before relaying the original pieces in their proper positions. Damaged joints were repaired simultaneously, restoring continuity across the entire floor.

Only after resolving the structural issues could the following restoration stages proceed in the correct sequence. This method protected the original tiles, minimised the likelihood of future movement, and ensured that the cleaning and finishing work produced lasting results, rather than a temporary fix.

How to Convert a Safety Hazard into a Functional Entrance: The Benefits of Stable Victorian Tiles

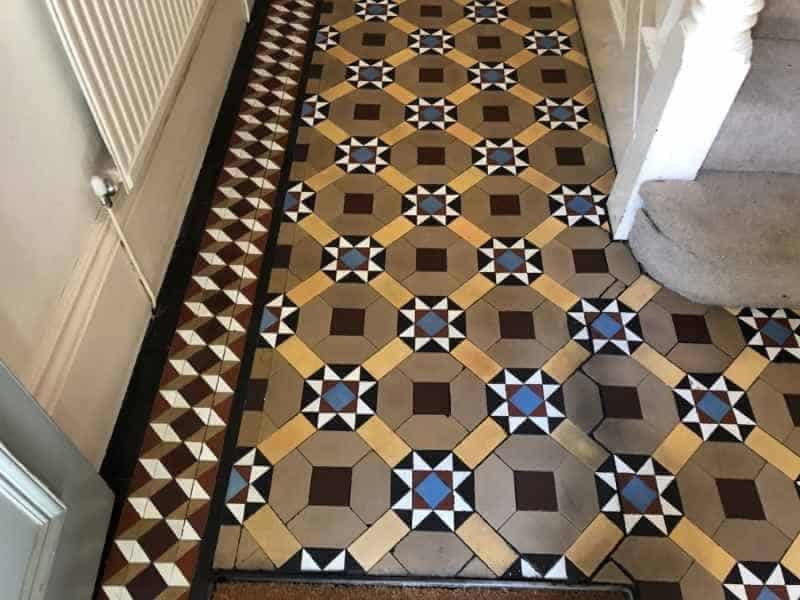

Homeowners often notice stability improvements after completing a successful Victorian tile restoration. Following the repairs, the entrance floor no longer shifted under pressure, and the previously uneven surfaces felt secure underfoot. The removal of loose sections transformed the hallway from a source of anxiety into a functional, reliable entrance once more.

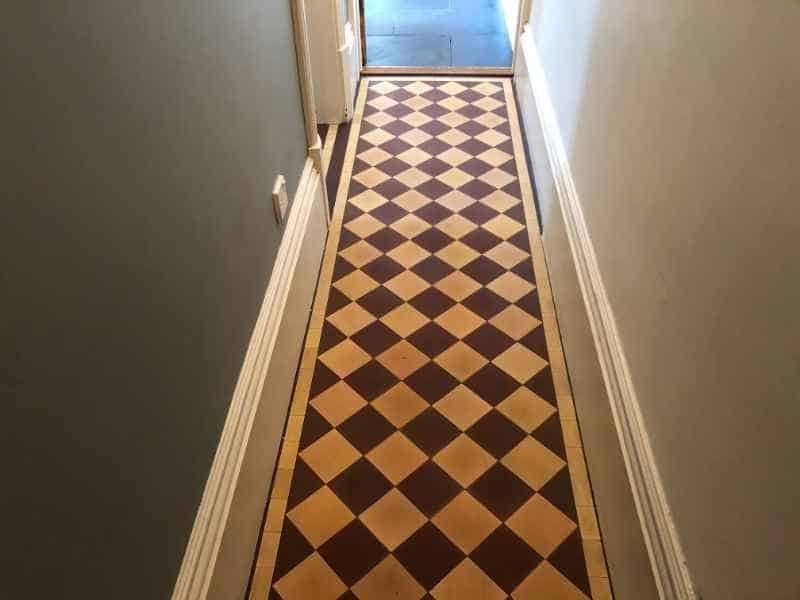

The visual improvements were equally remarkable. Repaired joints provided a more uniform appearance, while thorough cleaning uncovered colours and pattern details that had been hidden beneath years of grime buildup. A breathable protective treatment was applied to resist future staining while allowing moisture to dissipate naturally through the floor structure.

A fully restored Victorian tile floor displays the original fired matte surface with consistent colour and pattern. When a topical sealer is appropriate, it can add a slight protective sheen without altering the character of the period floor. The completed entrance maintained its historic aesthetic while becoming safer, cleaner, and significantly easier to maintain.

Where Can You Learn More About Restoring Victorian Tile Floors to Prevent Common Mistakes?

Neglecting the underlying causes of tile movement frequently results in recurring problems. One of the key lessons learned from this Stapenhill project was that visible symptoms rarely occur in isolation. Loose joints, uneven levels, and movement underfoot were all interconnected, and focusing solely on appearance would never yield a lasting solution.

This project also underscored the importance of executing the work in the correct order. Stabilisation was the first step, followed by cleaning, joint repairs, and protective finishing. This systematic approach preserved the original clay material while providing a practical solution to the homeowner’s concerns.

Readers seeking broader insights can explore the main Victorian tile cleaning resource, which delves into common issues, maintenance considerations, and restoration principles for historic clay floors. Understanding the causes of deterioration remains the most effective way to prevent repeating past mistakes, ensuring period entrances maintain their original character for many years.
