Three-Phase Switchboard: A Must-Have for Air Conditioning

High-power ducted air conditioning systems can drastically enhance comfort levels within a Brisbane home. However, these systems often require more electrical capacity than what a standard single-phase supply can provide. This highlights the critical need for a three-phase power upgrade. By transitioning to a three-phase power system, homeowners can ensure that their air conditioning operates at its optimal efficiency, without overloading the existing electrical infrastructure, thus safeguarding against potential electrical issues.

This comprehensive guide delves into the key scenarios that necessitate a three-phase upgrade, its significance for optimal air conditioning performance, and its relationship with solar power systems. This is especially relevant in Brisbane, where nearly half of all households utilise solar panels. Understanding these factors will empower homeowners to make informed decisions about their electrical needs, ensuring enhanced comfort and efficiency in their living spaces.

Understanding the Necessity of Three-Phase Power for Ducted Air Conditioning Systems

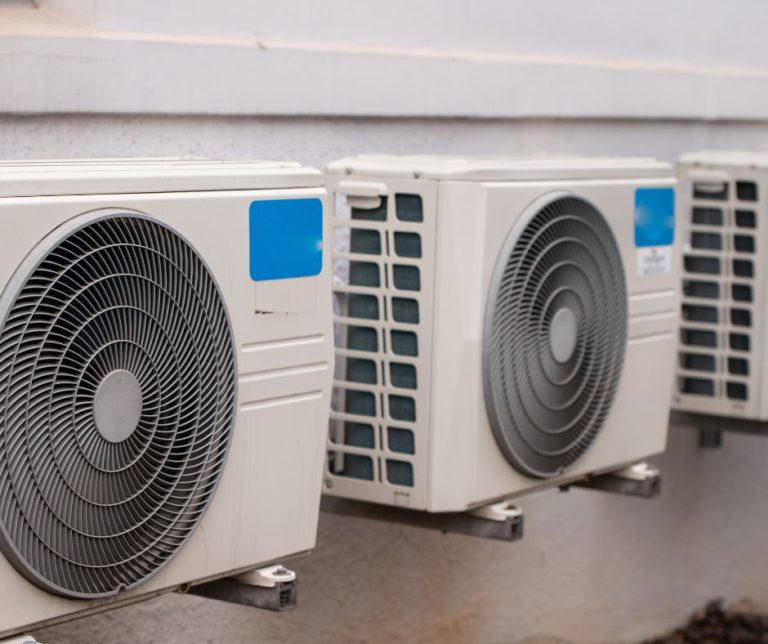

While many split system air conditioners and smaller ducted units can efficiently operate on a single-phase supply, larger ducted systems with a cooling capacity exceeding 12–15kW necessitate a significant boost in power consumption. As energy demands rise, the limitations of a single-phase supply become increasingly apparent, potentially resulting in service interruptions and operational inefficiencies that can disrupt your comfort.

Three-phase power is designed to evenly distribute the electrical load across three live wires instead of relying on a single phase. This advanced configuration offers numerous advantages, such as:

• Higher capacity systems can function without tripping circuit breakers, thus diminishing the likelihood of system failures and ensuring uninterrupted comfort.
• More stable voltage improves the efficiency and longevity of the air conditioning unit, guaranteeing consistent performance that enhances your living environment.
• Reduced strain on your overall electrical system, especially when other high-demand appliances are utilised simultaneously, protecting your home’s electrical integrity.

If you are in the process of constructing a large new home or upgrading to a more powerful air conditioning model, opting for a three-phase supply could be the most effective and compliant method to meet your electrical demands in line with Australian Standards.

Identifying the Key Indicators for a Three-Phase Power Upgrade for Air Conditioning

• You are planning to install a ducted system that exceeds 12–15kW, which necessitates a robust electrical supply for optimal performance.
• Your electrician has advised that your current single-phase supply cannot accommodate the required load, indicating a need for an upgrade.
• The specifications provided by the air conditioning manufacturer explicitly state the necessity for three-phase power to ensure efficient operation.
• You regularly operate other high-demand appliances, such as large pool pumps, welders, or commercial kitchen equipment, simultaneously with your air conditioning unit.

An electrical assessment conducted by a qualified electrician can clarify whether your current electrical supply meets the demands of your air conditioning system or if a three-phase upgrade would significantly improve reliability and performance in the long run.

Exploring the Integration of Solar Power with Three-Phase Systems

With over half of Brisbane households now harnessing rooftop solar energy, many residents are keen to explore ways to expand their systems or integrate them with high-power appliances, including ducted air conditioning. The synergy between solar power systems and three-phase upgrades can greatly enhance energy efficiency and improve the overall performance of these systems.

Typically, residences connected to a single-phase supply in Australia are limited to around 5–6.6kW of solar inverter capacity due to regulations set by most electricity distributors. If you intend to install a larger solar system—particularly those exceeding 10kW—transitioning to a three-phase connection may be essential to comply with network requirements and avoid potential export limitations that could hinder your solar energy usage.

Utilising three-phase power also facilitates:

• Balancing solar generation across phases, which aids in smoother grid export and boosts system reliability.
• Preventing voltage rise issues that could lead to solar inverters tripping, thereby maintaining consistent operational efficiency.
• Supporting the operation of high-power appliances directly from solar energy without overloading any single phase, thus enhancing overall system efficiency.

If you are considering both a large ducted air conditioning system and an expanded solar array, upgrading to three-phase power can substantially enhance operational efficiency, ensure compliance with regulations, and optimise your ability to harness and utilise solar energy effectively.

Step-by-Step Process for Transitioning to Three-Phase Power

The transition to three-phase power is generally a straightforward process when handled by a licensed electrician. The upgrade typically involves several key steps:

1. Assessment – Evaluating your home’s load requirements, the specifications of your air conditioning system, and your solar energy plans to ensure compatibility and efficiency.
2. Distributor application – Submitting a request for approval from your local energy network provider, thus ensuring adherence to all relevant regulations.

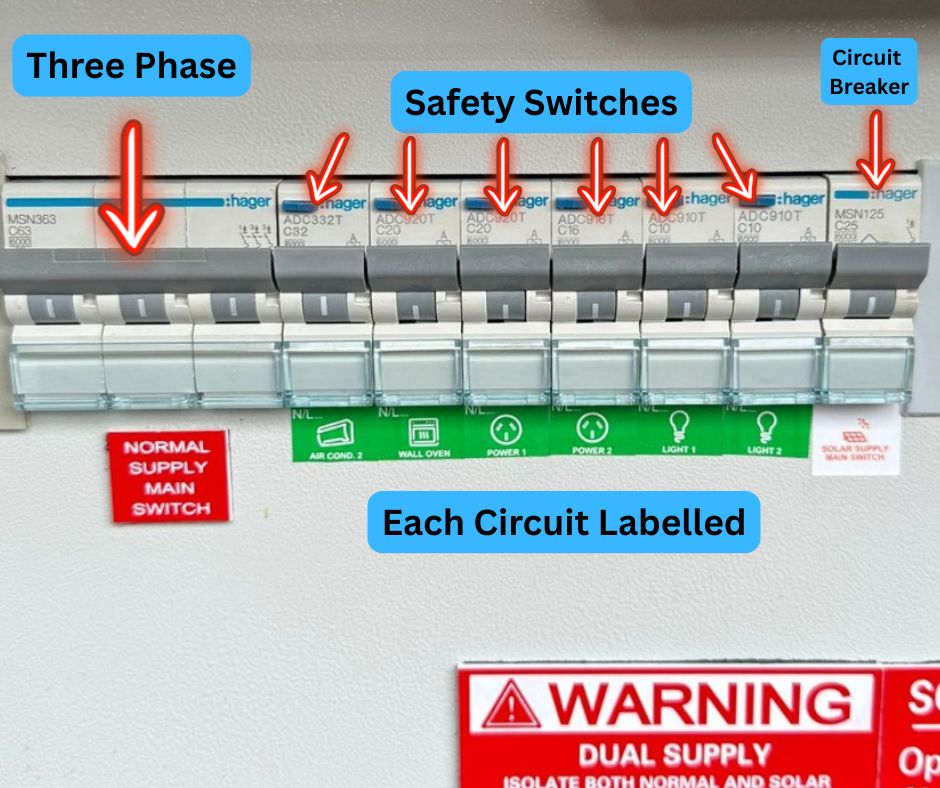

3. Switchboard upgrade – Installing a compliant three-phase switchboard along with necessary circuit protection measures to guarantee safety and operational efficiency.
4. Final connection – Coordinating with your energy provider to connect the new three-phase supply effectively, ensuring seamless integration with your existing systems.

At Precision Electrical & Air, we are dedicated to managing the entire upgrade process from start to finish, ensuring that your air conditioning and solar systems are equipped to meet the demands of modern living and energy requirements in a safe and effective manner.

Exploring the Benefits of Upgrading to Three-Phase Power

Investing in a high-power ducted air conditioning system, especially in conjunction with a substantial solar installation, means that selecting three-phase power is not merely an upgrade; it represents a commitment to reliability and superior performance. This enhancement ensures stable operation, significantly reduces the risk of electrical complications, and provides the necessary capacity to run your comfort systems without any compromises, allowing for a seamless lifestyle.

We specialise in the installation, upgrading, and maintenance of three-phase switchboards throughout Brisbane, ensuring smooth integration with solar and battery systems. Whether you are in the process of building, renovating, or retrofitting, our expert team will design an electrical solution that keeps your home comfortable, energy-efficient, and well-prepared for the future.
