Concrete Floor Thickness Guidelines for Car Hoist Setup

Key Considerations for Installing a Car Hoist in Your Garage for Optimal Performance

If you are considering the installation of a car hoist in your garage, it is critical to ensure that your concrete floor meets the necessary specifications. A robust and stable foundation is essential not only for the effective functionality of the hoist but also for the safety of your vehicles and anyone operating the equipment. Thorough preparation and strict adherence to guidelines can significantly enhance both the performance and longevity of the installation. Ignoring these factors can lead to serious safety hazards and costly repairs down the track.

Most car hoists demand a concrete slab that is at least 100mm (4 inches) thick. This specific measurement is crucial as it facilitates the even distribution of weight from both the vehicle and the hoist, effectively minimising the risk of cracking or sinking over time. For heavier-duty hoists, it is advisable to consider a thicker concrete slab, potentially reaching up to 150mm (6 inches), to guarantee optimal performance and maintain the highest safety standards. Always consider the unique requirements of your garage space and the specific hoist model you intend to use.

How to Accurately Assess the Concrete Thickness Needed for Your Car Hoist Installation

The thickness of your concrete floor is a pivotal factor in the safe installation and operation of a car hoist. There are several critical elements that must be assessed when determining the appropriate depth for your slab, ensuring it can adequately bear the loads it will encounter during use. Understanding these factors can help you avoid costly mistakes while enhancing the safety and functionality of your garage setup for years to come.

Evaluating Load Capacity for Your Car Hoist Installation

Car hoists impose considerable stress on the concrete floor beneath them. Therefore, it is essential to fully comprehend the total weight that your concrete floor must support. This consideration includes not only the weight of the vehicle but also the weight of the hoist itself, which can considerably increase the overall load on the floor. Properly understanding these weights is vital for ensuring a safe and effective installation.

A standard passenger car typically weighs between 1,500 to 2,000 kg, while the hoist may add an additional 500 to 1,000 kg. Moreover, it is wise to factor in extra weight as a safety buffer to ensure the structure can accommodate unforeseen circumstances. This proactive approach can safeguard against potential issues during operation and enhance the overall safety of the setup.

For most home garages, a concrete thickness ranging from 100 mm to 150 mm is generally suitable. However, if you plan on lifting substantially heavier vehicles, it may be essential to consider a thicker slab to guarantee safety and stability during operation. Consulting with a structural engineer can provide tailored advice, helping you calculate the precise thickness needed based on your specific circumstances and requirements.

Understanding the Different Types of Car Hoists and Their Concrete Thickness Specifications

It is vital to acknowledge that various types of car hoists have distinct requirements concerning concrete thickness. Two-post lifts and four-post lifts are among the most popular options for homeowners looking to incorporate a car hoist into their garage setup. Understanding these differences can significantly impact your installation process.

Two-post lifts typically exert pressure on specific points, necessitating a thicker concrete slab, often around 150 mm or more, to effectively accommodate the concentrated load. This ensures that the hoist operates safely and efficiently without compromising the integrity of the concrete.

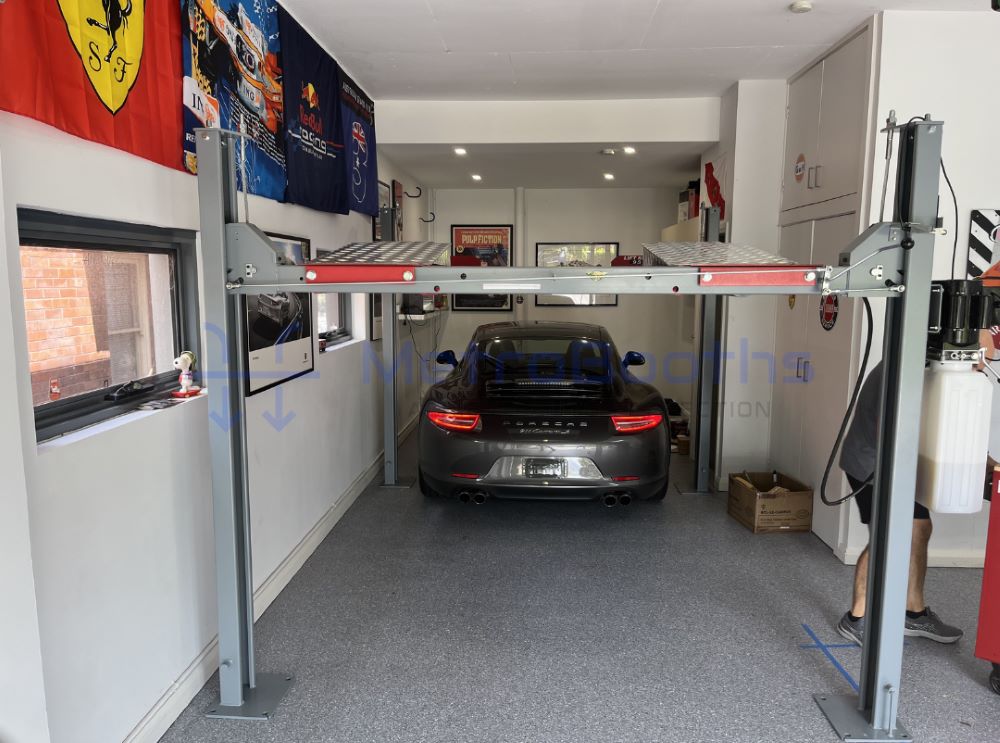

On the other hand, four-post lifts tend to distribute weight more evenly across a larger area, allowing them to function effectively with a slightly thinner slab, generally within the range of 100 mm to 125 mm. This understanding plays a significant role in your planning and installation process, ensuring you choose the right hoist for your garage space.

Always consult the manufacturer’s specifications for the hoist you are considering, as they will usually provide detailed information regarding the minimum concrete thickness required for safe operation. Adhering to these guidelines is crucial for ensuring optimal performance and longevity of your car hoist.

Remember, these recommendations serve as general guidelines. Your specific needs may vary depending on the configuration of your garage and the types of vehicles you intend to lift, so assessing your situation carefully is essential.

The Significance of Concrete Strength and Reinforcement Methods for Car Hoist Installations

The strength of your concrete is just as crucial as its thickness. Stronger concrete can often be effectively utilised at a thinner depth while still providing adequate support for heavy loads. This is particularly relevant in the context of a car hoist installation, where load-bearing capabilities are paramount.

It is advisable to use concrete with a compressive strength of at least 25 MPa for a car hoist installation. Many industry professionals recommend opting for concrete with a strength of up to 32 MPa for applications that involve heavy-duty use and frequent vehicle lifting. This strength ensures that your slab can withstand the rigours of daily use without compromising safety.

Incorporating reinforcement techniques is essential for significantly enhancing the durability of your concrete. The addition of steel mesh or rebar can substantially improve the overall strength of your concrete floor, allowing for the use of a thinner slab while still ensuring it can effectively support heavy loads during operation. This consideration is especially important for homeowners keen on balancing cost with performance.

For most home garages, SL82 mesh presents a reliable option that provides sufficient strength for the majority of car hoists without incurring excessive costs. If you have concerns regarding potential cracking, consider integrating fibres into your concrete mix. This inclusion can assist in mitigating the formation and propagation of small cracks over time, thus enhancing the longevity of your installation.

Crucial Installation Factors for Ensuring Successful Car Hoist Operation

When it comes to installing a car hoist, meticulous site preparation and consistent floor maintenance are paramount. By paying careful attention to concrete specifications and ensuring proper floor care, you can guarantee the safe and prolonged operation of your hoist, ultimately protecting your investment and ensuring peace of mind as you work on your vehicles.

Essential Site Preparation and Concrete Pouring Techniques for Your Car Hoist Installation

Before the installation of your car hoist, it is imperative to verify that your concrete floor meets all necessary specifications. Most hoists require a slab that is at least 100mm thick and constructed with 3000 PSI concrete. Additionally, the slab must be perfectly level and free of any cracks to ensure optimal performance and safety during use. This attention to detail is critical for avoiding future complications.

For new concrete pours, it is essential to utilise steel reinforcing mesh and allow the concrete to cure for a minimum of 28 days. Furthermore, ensure that the area being poured is larger than the footprint of the hoist to provide adequate support and stability. This foresight will help you avoid any potential issues that may arise from insufficient slab size.

Avoid placing the hoist over expansion joints or weak areas of the concrete. If you are uncertain about the strength and integrity of your floor, it is highly advisable to consult a professional who can accurately assess its condition and provide guidance on any necessary improvements.

Crucial Ongoing Maintenance After Your Car Hoist Installation

Once your car hoist is installed, it’s critical to regularly monitor the condition of the concrete surrounding it. Keep an eye out for any cracks, chips, or signs of stress, and address any issues promptly to prevent larger complications that could affect the functionality and safety of your hoist. Regular inspection can save you from costly repairs in the future.

It is essential to clean up any oil and fluid spills immediately, as these substances can weaken the concrete over time and lead to structural issues. Additionally, consider using protective mats under the lift arms to minimise wear and tear on the floor, thus extending its lifespan and maintaining the integrity of your installation.

Regularly check the tightness of the anchor bolts, as loose bolts can cause damage to the concrete and render the hoist unsafe for operational use. This simple maintenance step can prevent costly repairs and ensure safe usage, allowing you to focus on your tasks without worry.

Think about applying a sealant to the concrete to protect against stains and moisture. Such measures can significantly extend the lifespan of your concrete floor while also enhancing its appearance, making it a worthwhile investment for any garage owner looking to maintain their space.

Common Queries Regarding Car Hoist Installation and Concrete Specifications

Installing a car hoist necessitates careful consideration of the appropriate concrete thickness to ensure both safety and stability. Below, we address some common questions related to the concrete requirements for various types of lifts, helping you make informed decisions about your installation.

What is the minimum concrete thickness required for a two-post lift installation?

For a two-post lift, the recommended minimum thickness for the concrete slab is 100mm. This depth provides adequate strength to support both the weight of the vehicles and the lift itself. Always consult the manufacturer’s specifications, as certain models may require thicker slabs for safe operation, ensuring that you comply with all necessary guidelines.

What specifications must a concrete slab meet for a four-post hoist installation?

Typically, a four-post hoist necessitates a concrete slab thickness ranging from 100mm to 150mm. The slab must be level and free of any cracks to ensure effective and safe operation. It’s wise to have a professional evaluate your floor to confirm that it meets the hoist’s installation requirements, ensuring peace of mind and the longevity of your investment.

Is it safe to install a car hoist on a concrete floor that is less than 100mm thick?

Installing a car hoist on a concrete floor that is less than 100mm thick is highly discouraged. Such thin slabs are likely to crack or fail under the weight, leading to significant safety hazards. If your existing floor does not meet the required thickness, it may be necessary to add a new layer of concrete to achieve the appropriate depth for safe operation, thereby ensuring the safety of your equipment and the people using it.

What slab thickness is generally recommended for vehicle lift systems?

Most vehicle lift systems are best supported by a slab thickness of 100mm to 150mm. This range is suitable for both two-post and four-post hoists. For heavy-duty lifts or those intended for commercial applications, it may be necessary to consider an even thicker slab to ensure safety and stability during use, ensuring that your installation meets all operational demands.

What weight can a 100mm thick concrete floor support during hoist operations?

A 100mm thick concrete floor is generally capable of supporting the weight of most passenger vehicles and light trucks when utilised with an appropriate hoist. However, the precise weight limit will depend on the specific concrete mix and reinforcement employed. It’s advisable to consult with a structural engineer for detailed load ratings tailored to your specific situation and requirements, ensuring that your installation is safe and effective.

What factors should be considered when calculating concrete thickness for heavy lifting equipment?

When determining the appropriate concrete thickness for heavy lifting equipment, consider the following crucial factors:

1. The weight of the heaviest vehicle you intend to lift
2. The type of hoist being installed
3. The soil conditions beneath your concrete slab
4. Any additional loads from tools or equipment that may be used in conjunction with the hoist
